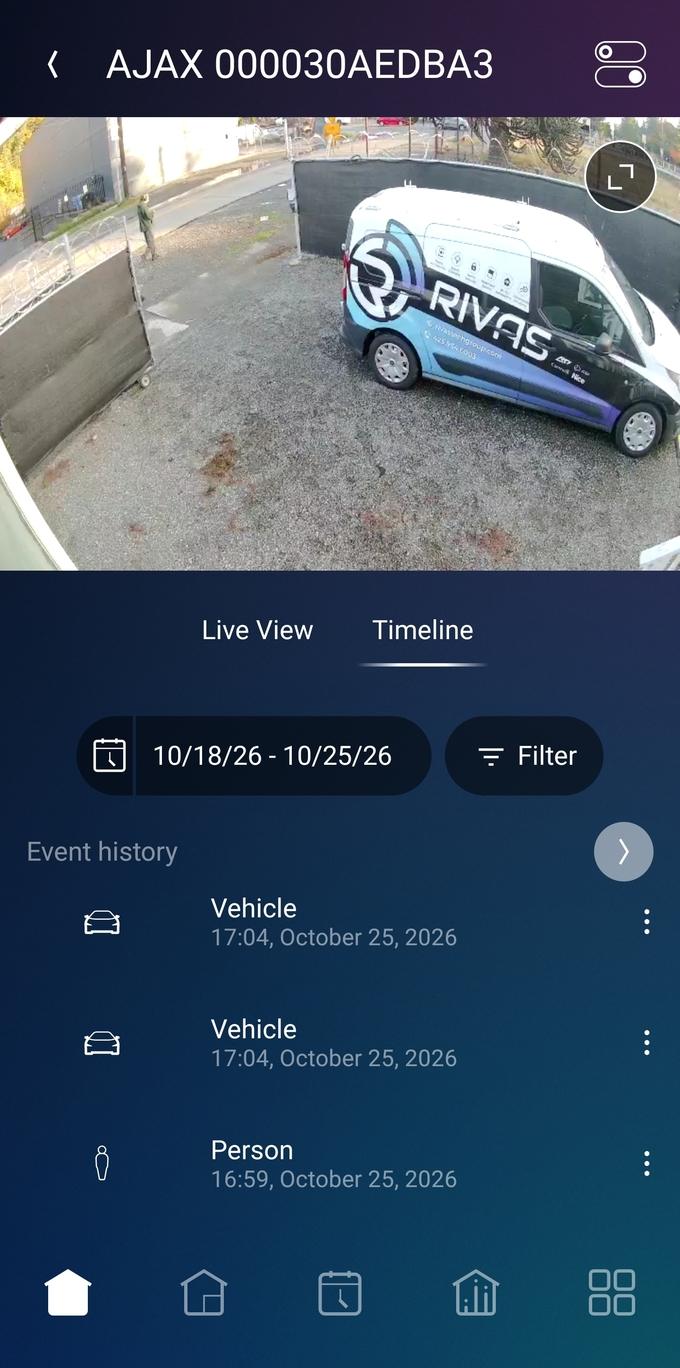

Live view and History on the Control4 app — real footage from a Rivas Technology Group site.
Control4 Driver · by Rivas Technology Group
Ajax Systems Video Surveillance Baseline IP Camera — Control4 Driver by Rivas Technology Group
Works with Ajax
- Rivas Technology Group: 5.0 from 49 Google reviews
Brings Ajax Baseline IP cameras into Control4 over your local network — live video, AI detections and History playback on OS 3 Navigators, touchscreens, the Control4 app and on-screen TV. No cloud, no Ajax account. Works with the Ajax Baseline series — TurretCam, BulletCam and DomeCam, including HL models. Built for Control4 X4 — developed and bench-tested on Control4 OS 4.2.1. Minimum Control4 OS 3.4.0.
Free 14-day trial in Composer. Buy a license anytime to keep it going — no account, no card.
Encrypted driver. © Rivas Technology Group — copying or redistribution prohibited.
$149per project · Lifetime license
- Lifetime license — buy once, no monthly fee
- Instant delivery: license key emailed, activate in Composer
- Try free for 14 days, buy when you're ready
How it works: install the driver and run it free for 14 days. Buy anytime, on its own or with the rest of your order — we match your license to your project and email your key; paste it in Composer and the driver activates itself to the controller. No MAC to look up.
Secure checkout, powered by Stripe.We accept Visa, Mastercard, Amex, Discover, Apple Pay, Klarna and Affirm.
- License
- Lifetime (perpetual), one Control4 project (its Director) — covers every Ajax camera on it. Activated with a key in Composer Pro.
- Connection
- Local ONVIF on your LAN. No cloud, no Ajax account.
- Delivery
- Instant — the key is emailed on purchase. No shipping.
- Compatibility
- Built for Control4 X4 — developed and bench-tested on Control4 OS 4.2.1. Minimum Control4 OS 3.4.0.
- Requires
- Ajax baseline camera with ONVIF enabled in Ajax PRO.
What the driver does
A local Control4 camera driver for the Ajax Baseline video-surveillance IP cameras — it talks to the camera directly over ONVIF on your network.
Live video on every Navigator
Main and sub streams on touchscreens, the Control4 app and on-screen TV, through the Control4 camera proxy.

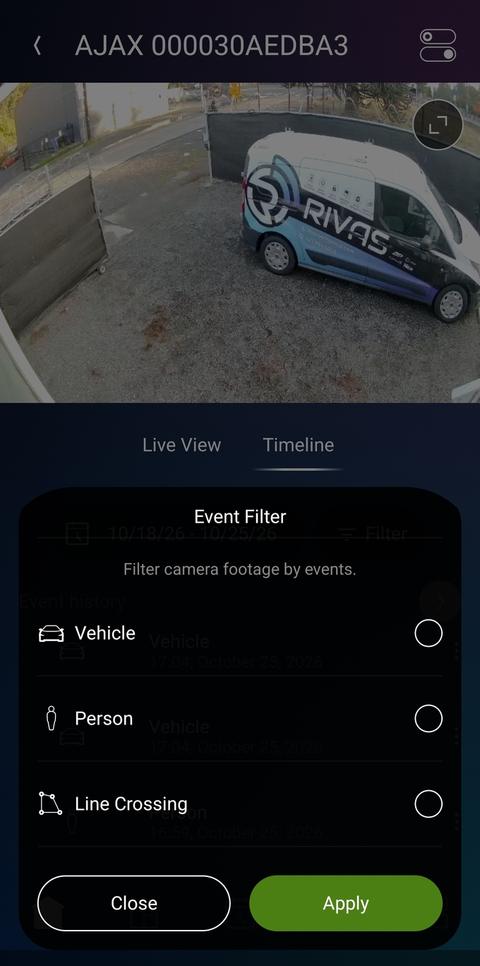

AI detections as Control4 events
Person, vehicle, pet, other, line-crossing and motion become Control4 events, variables and conditionals you can program against.
History & playback
Events land in the Control4 app's History / Timeline, each with a playback link that opens the camera's SD recording at that moment.
Picture control
Day / Night, Wide Dynamic Range and picture levels as programming commands — limited to what the camera supports.
Local & private
Talks to the camera directly over ONVIF on your LAN. No cloud, no Ajax account, nothing opened to the internet. The Ajax app keeps working alongside.
Set-and-forget
Auto-names the Control4 device from the camera; settings, counters and playback links survive reboots and driver updates.
- Person
- Vehicle
- Pet
- Line crossing
- Motion
- Other
AI detections surfaced as Control4 events & variables — automate scenes on person, vehicle, pet, line-crossing and motion.
Good to know — the one limitation
No snapshot still — a baseline-camera limit, not the driver. The baseline Ajax camera doesn't expose a snapshot (still-image) address — both ONVIF snapshot calls are refused, and it has only two video encoders — so there's no still image to pull. Control4 views that rely on a snapshot (the 2-column Multiview, History thumbnails) can't show this camera's picture; events show their type icon instead. Live view, detections and History playback all work normally. If you use a camera model that does offer a snapshot, the driver detects and uses it automatically.
Also not included: PTZ / pan-tilt-zoom, two-way talk, and Ajax alarm-system integration (nothing from the Ajax cloud). The driver doesn't record — the camera records to its own SD card and the driver links to it for playback.
Read more: Ajax and Control4: how the alarm driver works · Control4 scenes when the Ajax alarm arms · Ajax cameras and recorders
Compatible cameras

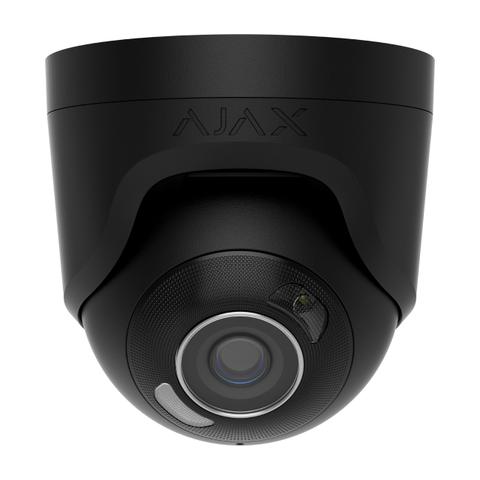

Ajax TurretCam HL 8MP$379 · 4K turret camera with AI detection
Ajax BulletCam HL 8MP$379 · 4K bullet camera for driveways and yards
Ajax BulletCam HL 5MP$319 · 5 MP bullet camera for driveways and yards
Ajax DomeCam Mini HL 8MP$379 · Small 4K dome camera for eaves and ceilings
Ajax DomeCam Mini 5MP$299 · Small 5 MP dome camera for porches and ceilings
