Indoor golf simulator installation, Tacoma and the South Sound
Golf simulator rooms
that start with one button
Projector, impact screen, launch monitor, audio, network, lighting and Control4 scenes for simulator rooms in homes and businesses across Pierce County and south King County. Designed as one build from the room measurements up.
Rivas Technology Group installs the AV and technology side of indoor golf simulators in Tacoma, Kent, Gig Harbor and Puyallup. That means a projector matched to the throw distance and a Foresight, Trackman or SkyTrak launch monitor on a wired network. It also means in-ceiling audio, lighting that stays off the screen, and a Control4 keypad that starts the round.
- Response
- We call or text back within one business day
- Launch monitors
- Foresight GCHawk, GC3, GCQuad; Trackman; SkyTrak; Uneekor; Garmin Approach R10
- Software
- FSX 2020 and FSX Play, E6 Connect, TGC 2019
- Control
- Control4 Authorized Dealer; Lutron RadioRA 3 and Caseta lighting
- License
- WA electrical contractor RIVASGL799DR, bonded, insured
- Reviews
- 5.0 from 49 Google reviews
What does a golf simulator installation include?
Six systems built as one room. A projector matched to the throw, the launch monitor mounted and networked, and in-ceiling audio. A wired low-latency network drop, lighting positioned off the screen, and a Control4 keypad that starts the round. The enclosure, impact screen and turf come from simulator vendors; we build everything that makes them work.
Most simulator rooms are built backwards, hardware first and AV, lighting and network figured out afterward. That is how you get a keystoned picture, a launch monitor that drops mid-round and recessed cans washing out the fairway. We start from the room measurements and the software you run. Simulator rooms share trades with home theater and audio and sit inside the residential work we do; commercial rooms are quoted through the commercial hub.
Which projector fits a simulator room?
A short-throw model chosen for your ceiling height and throw distance, not from a spec sheet. Most residential rooms have 9 to 11 foot ceilings and 15 to 20 foot throws. That calls for a short-throw projector in the 5,000 to 6,000 lumen range, so the picture fills the screen and survives the room lights.
Ultra-short-throw projectors suit very low ceilings but need precise floor placement. Ceiling mounting with conduit, the correct offset and image alignment are part of the job. A side-wall TV for shot data and a "Watch" scene turn the same room into a sports room without a second remote.
How do you integrate the launch monitor?

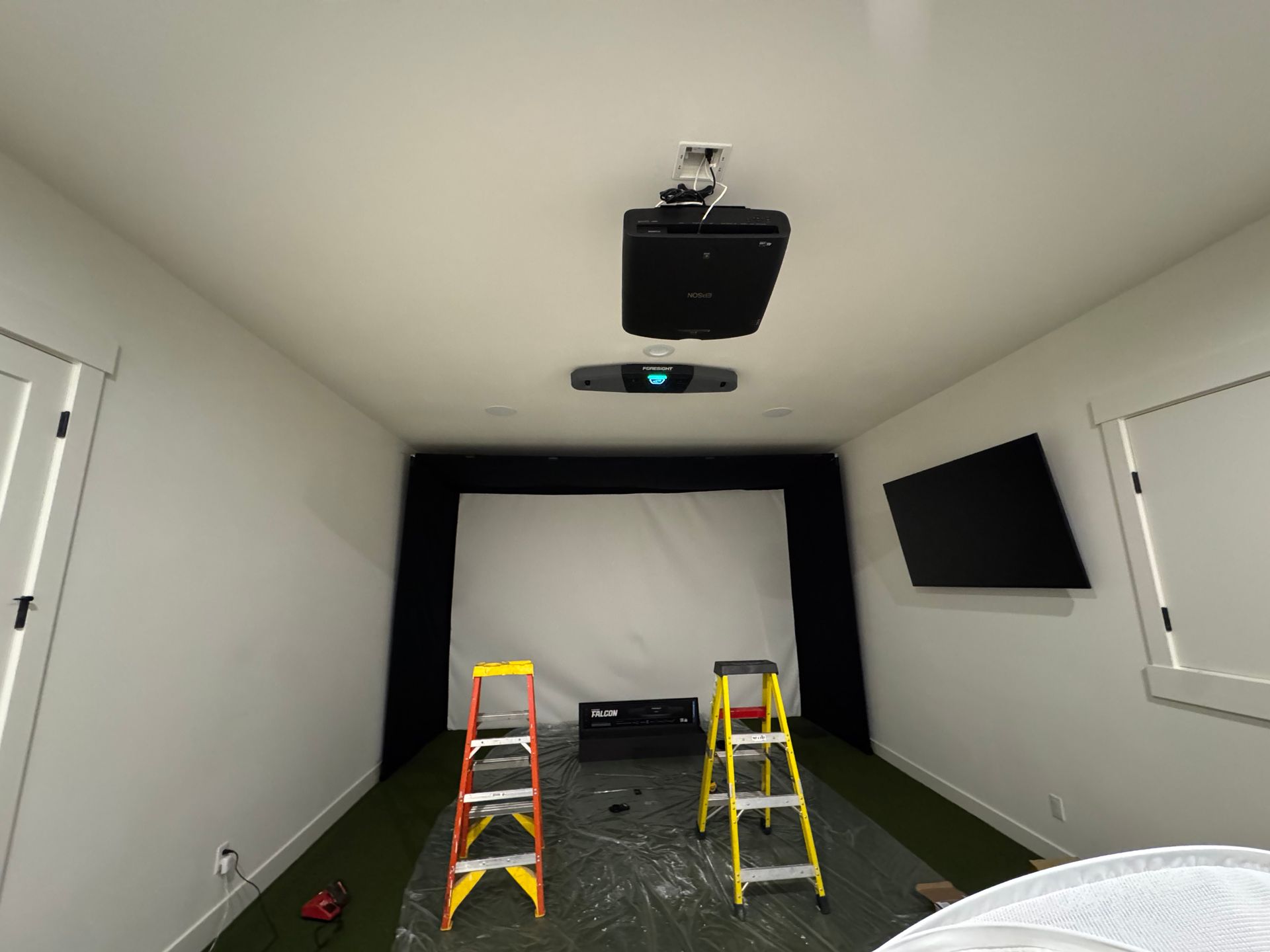

By mounting it to its tolerances and giving it a wired network. We install Foresight GCHawk, GC3 and GCQuad, Trackman, SkyTrak, Uneekor and Garmin Approach R10 systems and calibrate FSX 2020 and FSX Play, E6 Connect and TGC 2019. The GCHawk is a ceiling-mounted overhead camera with tight height, position and angle tolerances; we have installed them in South Sound homes and handle the mount, cabling and network configuration.
Every launch monitor and simulator PC gets a hardwired Cat6 drop and a dedicated access point. A residential router in the next room is not an infrastructure plan, and a dropped packet stops the round. The network design is on Wi-Fi and networking.
Why is lighting an AV decision?
Because a recessed can pointed at the impact screen washes out the course. We position fixtures to light the player zone and the entry without spilling on the screen, then build named scenes on a keypad.

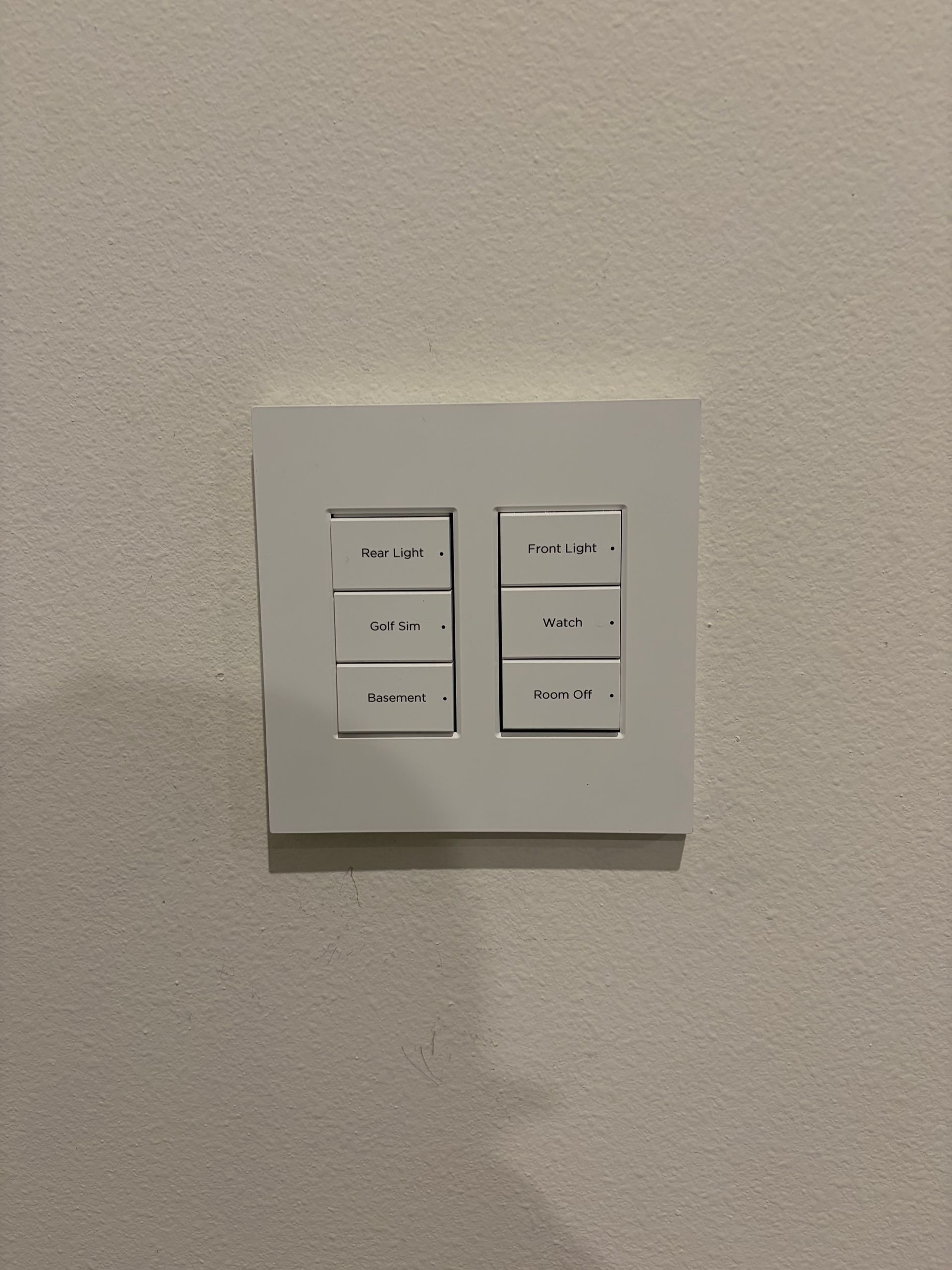

The "Golf Sim" scene dims to projection levels, sequences the projector on with warm-up, wakes the launch monitor and sets audio to background. The "Watch" scene switches to TV levels and routes sound to the side display. The "Front Light" and "Rear Light" scenes run zones separately during setup. The "Room Off" scene cools the projector down, turns off the lights and audio and puts the monitor in standby.
Lighting runs on Control4 or on Lutron RadioRA 3 and Caseta, covered on smart lighting. In a Control4 home the simulator becomes one more room the house knows about; the alarm on residential security can arm with "Room Off".
What drives the cost?
Room size, projector class, the launch monitor, audio zones and how much cable the finished room allows. As of September 2026, the AV and technology scope runs $8,000 to $35,000 or more installed; the top end is a room that doubles as a theater. The scope includes the projector and mount, launch monitor mounting, cabling and network configuration, and in-ceiling speakers and amplification. It also includes the Cat6 drop and access point, lighting fixtures and scene programming, and Control4 or standalone keypad control.
The enclosure, impact screen and turf are separate and usually sourced through simulator vendors. A house that already has a Control4 controller and a rack pays less. We quote after reviewing room dimensions and your equipment list; the instant quote gives a figure in minutes, and whole-home ranges are on smart home installation cost.
How does the build go?
Room review, fixed proposal, install, calibration, then a round with you on the keypad. Send the room dimensions, your launch monitor and the software, and we review them and visit if the room needs measuring.
Our own team runs the cable and conduit, mounts the projector and launch monitor, and installs speakers and lighting. We configure the network, calibrate the software and program the scenes. Then we play a few holes with you to confirm the data flows on every shot. You get a 1-year workmanship warranty, support at published rates, and the optional CURATOR plan for remote fixes when a software update changes something.
Where do we install golf simulators?
Homes and commercial spaces in Pierce County and south King County, from 415 Railroad Ave S in Kent, about 25 to 30 minutes from Tacoma. That covers Tacoma, Puyallup, Gig Harbor, University Place, Bonney Lake, Tehaleh, Sumner, Kent, Renton, Tukwila, Federal Way, Auburn and Covington and Maple Valley. Olympic Peninsula by appointment. Control4 Authorized Dealer, listed on Control4's integrator map; CEDIA member 2022 to 2026; WA electrical contractor license RIVASGL799DR1; 5.0 from 49 Google reviews. The rest of the house is on smart home automation and the security hub.
Questions we hear
What does the AV side of a golf simulator cost?
As of September 2026, the projector, launch monitor integration, in-ceiling audio, networking, lighting and Control4 automation run $8,000 to $35,000 or more installed. The top end is a room that doubles as a theater. The enclosure, impact screen and turf come from simulator vendors and are not in that range. We quote after measuring the room.
Which projector does a simulator room need?
One matched to the ceiling height and throw distance. Most residential rooms have 9 to 11 foot ceilings and 15 to 20 foot throws. That calls for a short-throw projector around 5,000 to 6,000 lumens. An ultra-short-throw model works for very low ceilings with precise floor placement. We measure before we spec.
Can you install a Foresight GCHawk?
Yes. The GCHawk is a ceiling-mounted overhead camera with tight tolerances on height, position and angle, and it needs a clean wired network to process shots. We handle the mount, cabling and network configuration, and we calibrate FSX 2020 or FSX Play with it.
Why does the launch monitor need a wired network?
Because a dropped Wi-Fi packet stops the round. Foresight, Trackman and SkyTrak rely on a stable low-latency connection to the simulator PC. We run a Cat6 drop to the room and put a dedicated access point on it so the round never waits on a crowded channel.
Can you work in a room that is already built?
Yes. We fish cable, run concealed conduit and mount equipment without unnecessary drywall work. If the enclosure and screen are already in, we add the projector, network, audio, lighting and Control4 around them.
Do I need Control4 for the scenes?
No. In a Control4 home the simulator joins the rest of the house, so lighting, audio, security and climate all know when the room is in use. Without Control4 we install a standalone keypad and scene controller scoped to the simulator room.
Do you install simulators in businesses?
Yes. Bars, clubs, offices and multifamily amenity rooms across King and Pierce County get the same design with commercial displays, paging-grade audio and a network segmented from the guest Wi-Fi. See the commercial hub for restaurant and hospitality AV.
Start with the room.
Send the room dimensions, your launch monitor and the software you run. We review them, visit if needed, and send a fixed proposal. We call or text back within one business day.
